TOOL CORRECTION SYSTEM

For special purpose machine


Micron setting tool holder


Type100 Tool Holder

Product Summary

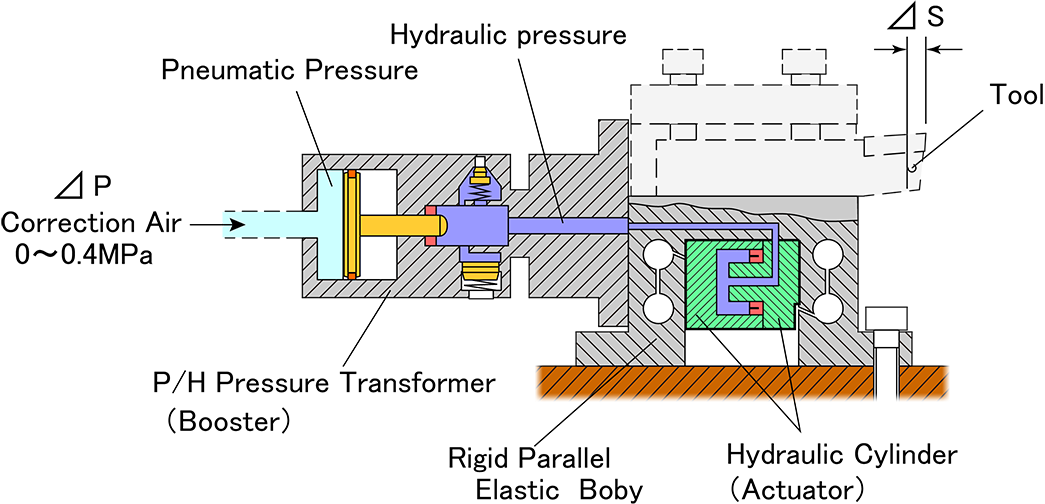

This is a tool compensation system that uses an aero-hydraulic elastic body for lathe machining of workpiece rotation.

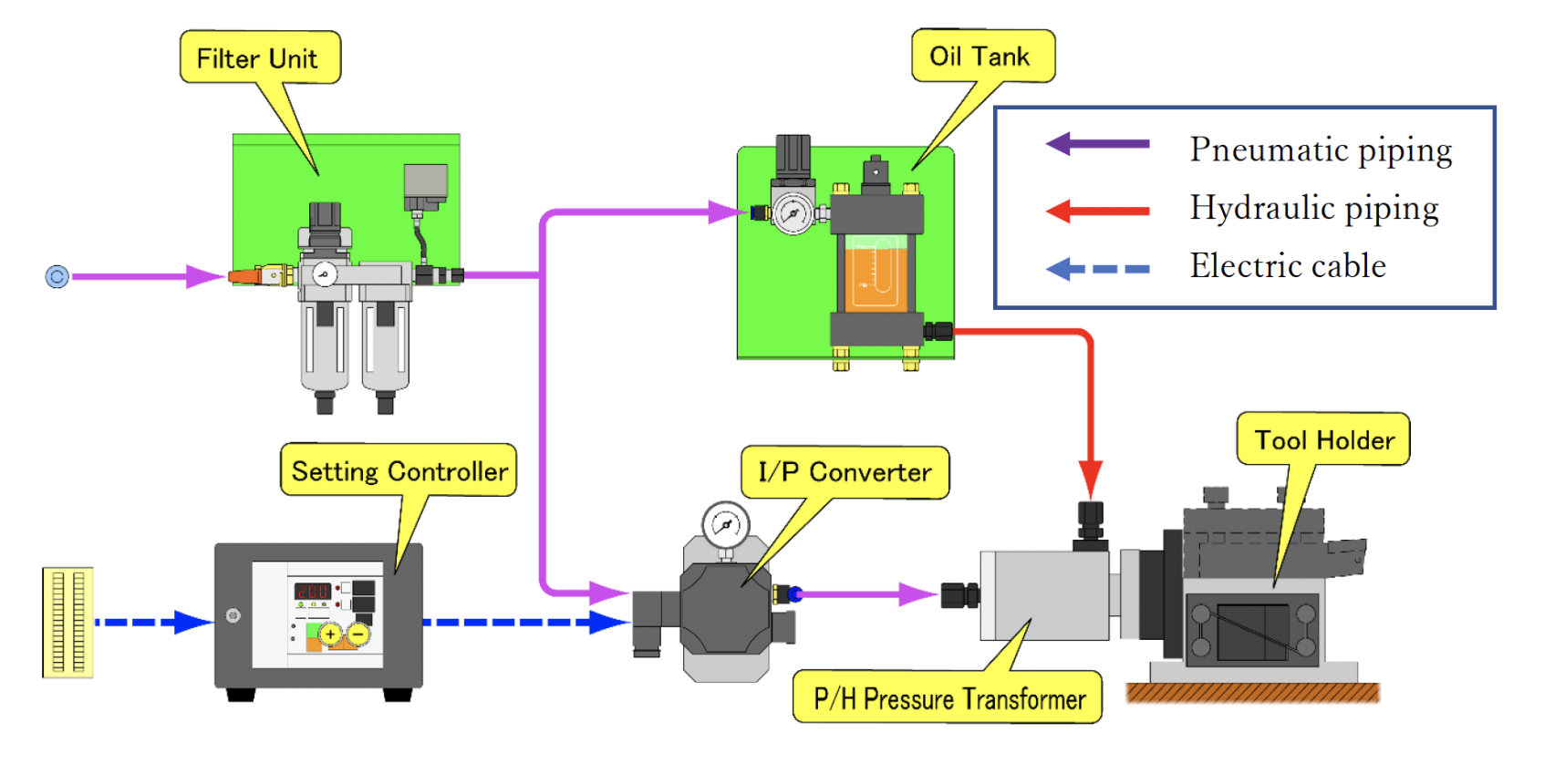

This device consists of a compensation holder part that changes the tool position and a separate air servo controller part that controls the position.
With controlled air/hydraulic pressure. The correction tool holder body is forcibly elastically deformed to operate in micron units.


Feature

  • Simple structure
  • The blade tip can be adjusted from outside the machine, making it safe.
  • Correction value change is plus/minus button
  • To change. Anyone can handle it easily.
  • Repeatability is as high as 1 micron
  • There are other variations.

Type 100 tool holder standard specification


  • Corrected working amount: 200 μm (φ0.4 mm)
  • Correction control air pressure: 0-0.4MPa
