Plug-in measurement holder
Measure the processing diameter without removing the work piece from the jig. It is a wireless measurement system that uses wireless communication. This is a contact type electric micro ATC capable measurement head that has its own small digital displacement scale built into the measurement head. Various shank variations are available to suit the machine interface.

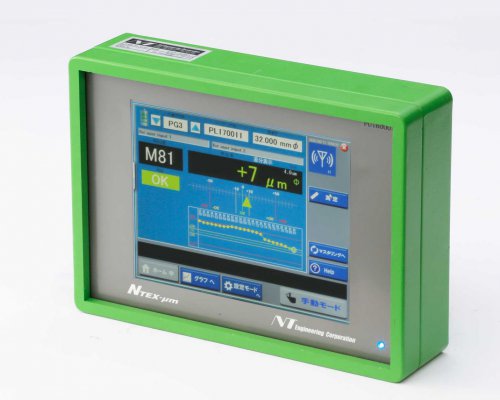

Plug-in measuring control unit NTEX-μm
It has a display screen such as a bar graph, run chart, judgment display, and a list display of measurement data, in addition to the wireless communication function, measurement function , measurement value calculation/judgment/analysis/measurement value display. It is equipped output signal from threshold and LAN output function for IoT.

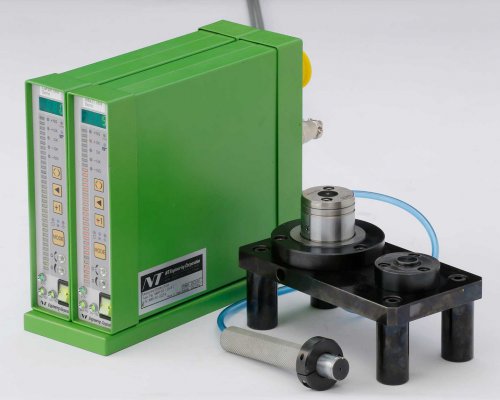

Air micro measurement
Learning a lesson from the past, this measurement uses the fluid characteristics of air. Basically, it is non-contact measurement of direct air blowing. If you are worried about the influence of surface roughness, there is variation of contact type leaf contact measuring head. Measuring type are on 1 location-1 diameter or 1 location-2 direction measurement head. and if there are many kinds of work variety, there is also a type that allows quick change of the measuring head only. It is used as set with the measurement controller.

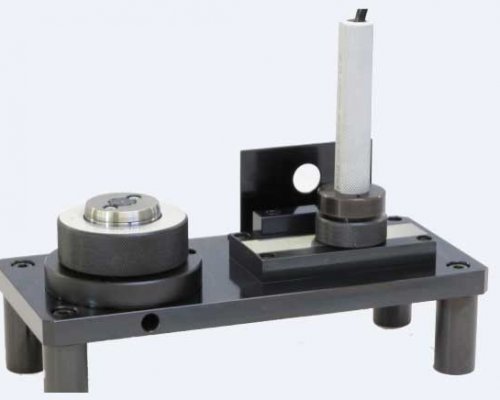

Air micro semi-automatic measurement
This semi-automatic measurement meets the demands of those who do not want to burden the operator, the measurement system is not high-priced. It is environmentally friendly and easy on the operator. Simply attach or detach the processing area you want to measure to a dedicated jig. The judgment of the processed dimension is displayed on the bar graph as well as on the digital display. In addition, the judgment of 5 classifications can be output outside the machine. An automatic feedback system can be constructed by combining with a tool correction holder.
