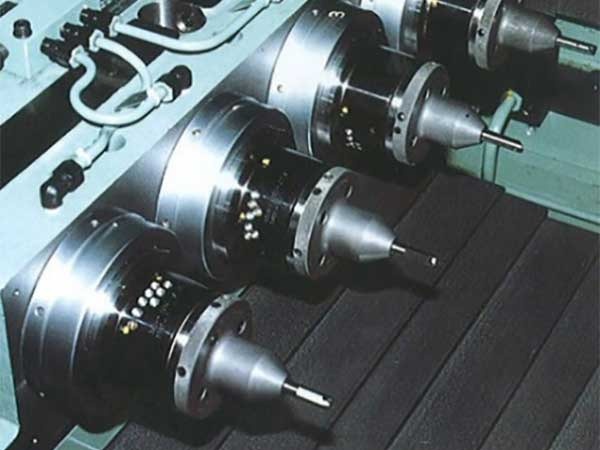

Tool correction system is essential for high-precision finishing
(Fine Boring).
Automatic correction feedback in combination with measurement system.
Product features
Why you need a tool correction

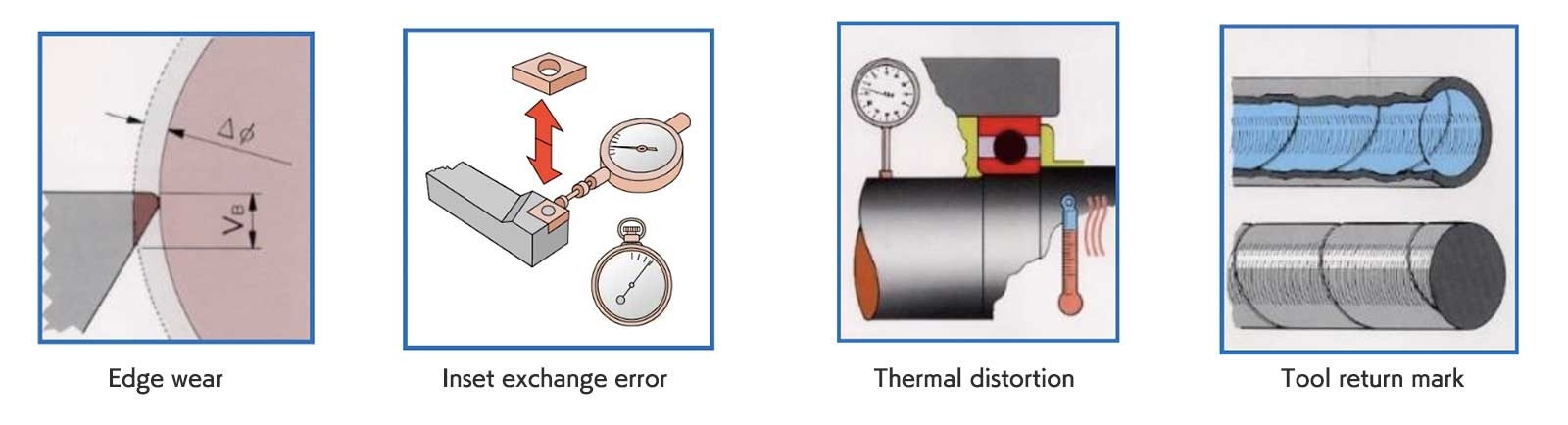

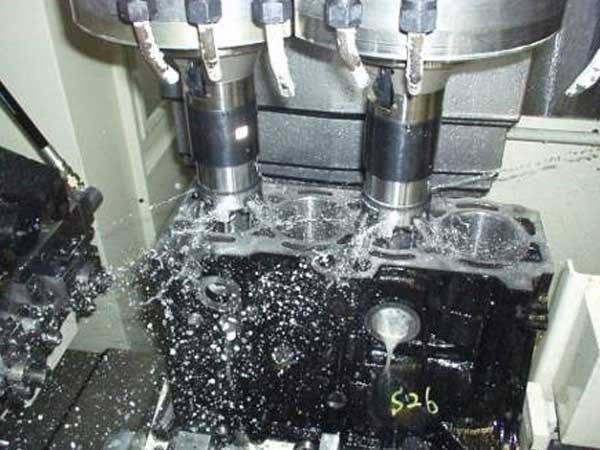

In mass-produced precision boring, it is necessary to remove the following factors that reduce accuracy in order to maintain high accuracy.

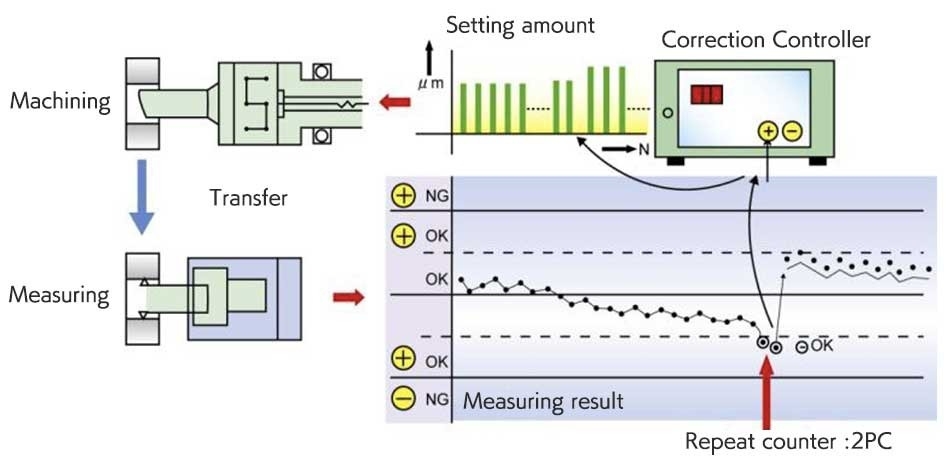

Post-process measurement and feedback with zone management

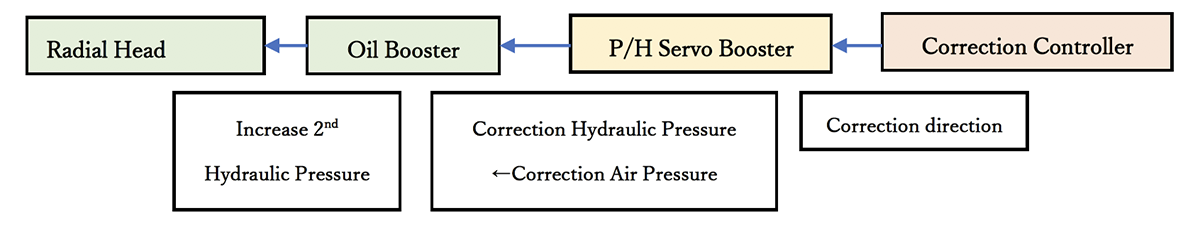

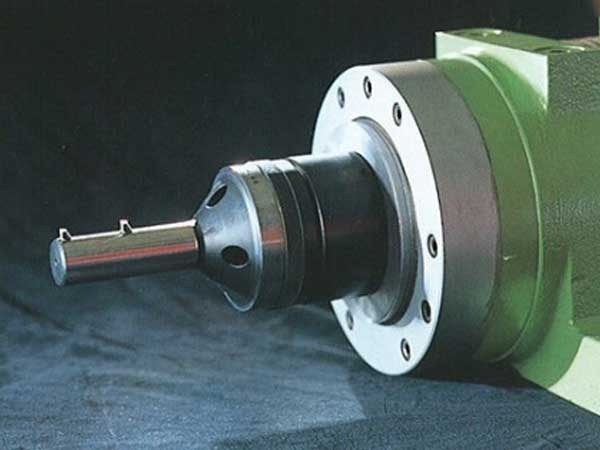

Pneumatic correction system
- Tool correction system that can adjust the cutting edge to micron unit, which is indispensable for high-precision F.B (fine boring) process of mass production line.
- Micron-based control can be easily fed back from outside the machine to machining process.
- Correction instructions can be changed manually or automatically. Supports man-hour reduction/labor saving/automation.
- Correction instructions are available by manual correction by pushing the plus/minus push button of a separate correction controller and automatic correction by receiving the correction instruction signal from the measuring system.
- The correction operation is performed via the machine control panel in conjunction with the machine tool feed unit.
- Since it has a retract function that allows the blade edge to escape, the return mark is not scratched.

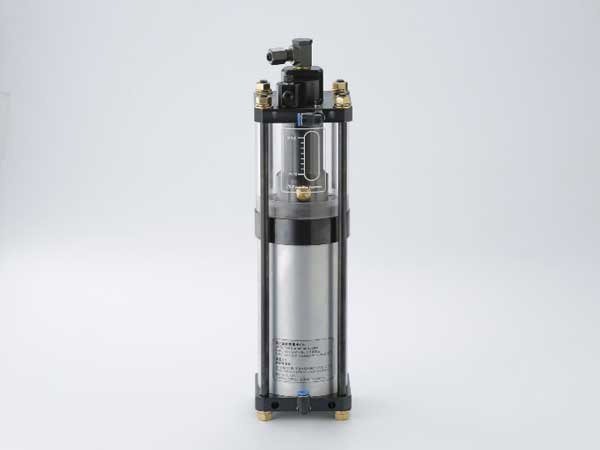

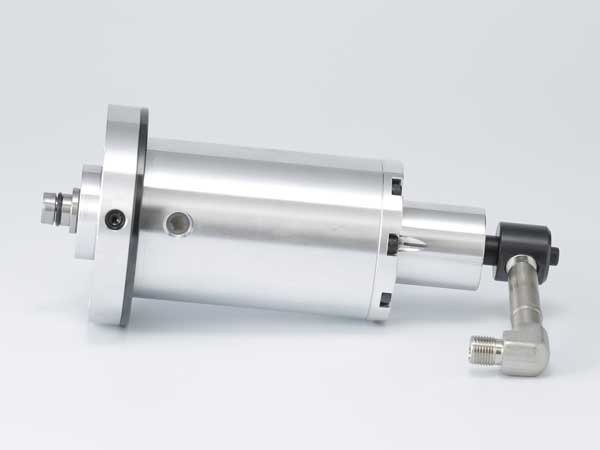

Single way Oil Booster(Hydraulic booster)

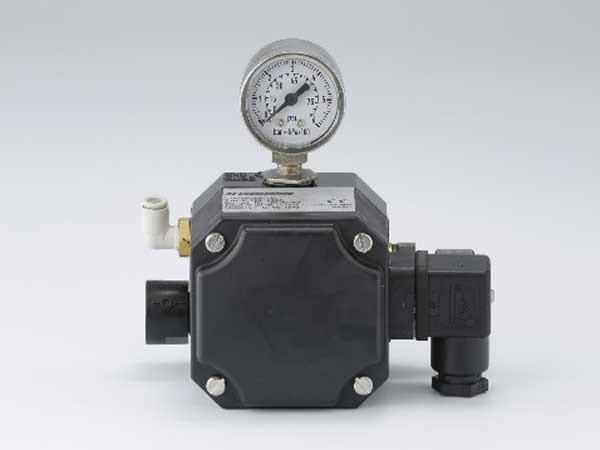

P/H pressure Transformer
External I/P converter
