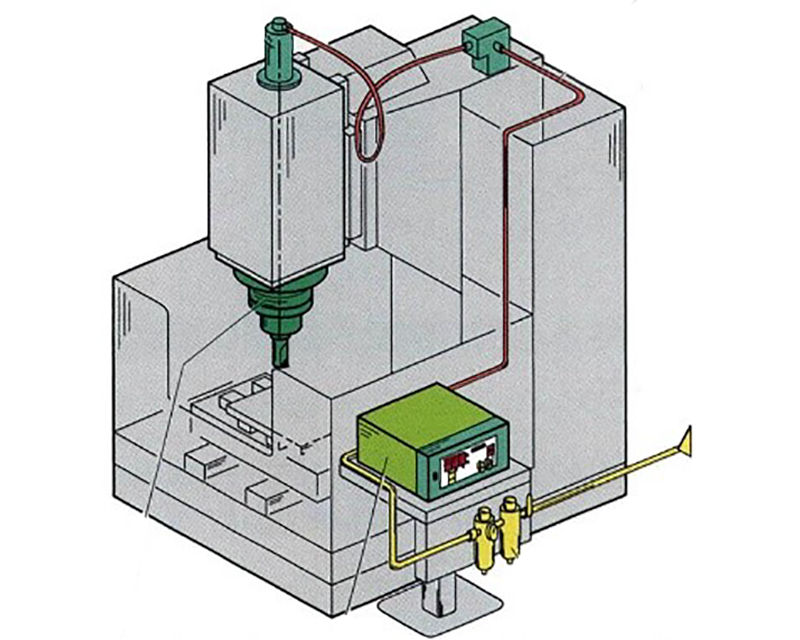

Indicates pneumatic control that performs the tool correction.
Change the correction value of the specified channel with plus/minus.
Anyone can easily give correction instructions.

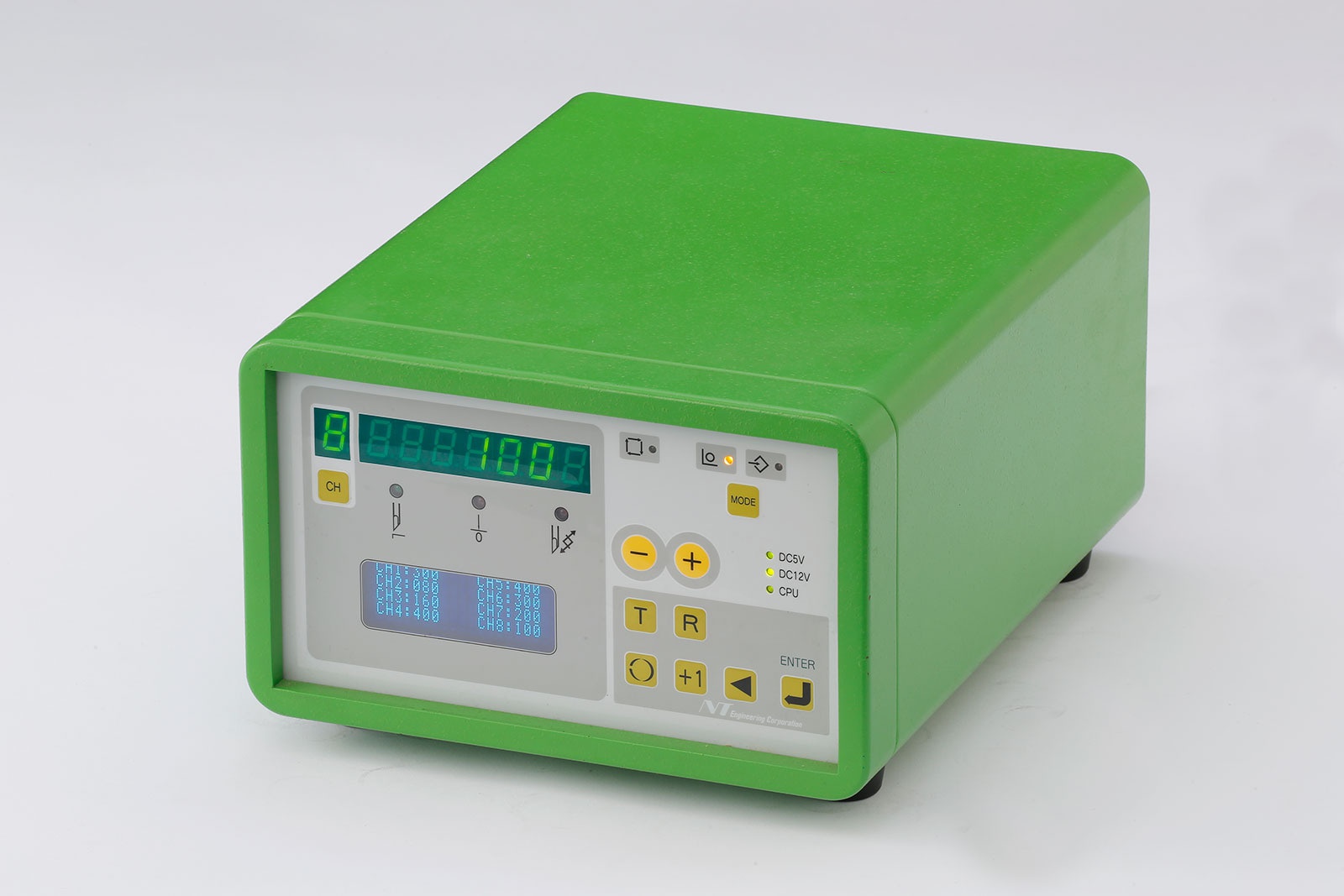

TC400 correction controller

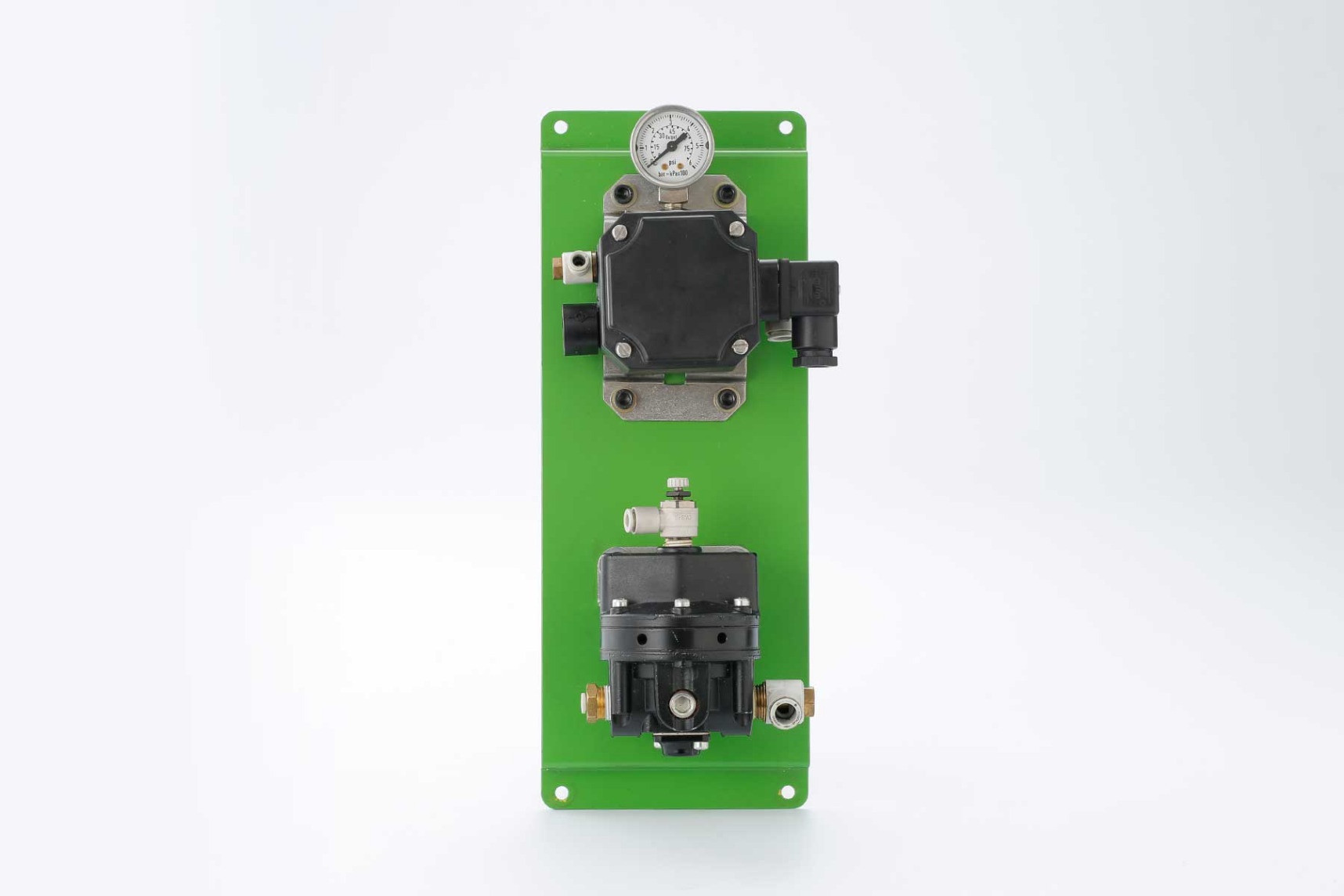

External I/P converter Flow amplifier
Product features
Standard type for general-purpose machines (for machining centers).
It is a control device that adjusts the pneumatic-hydraulic correction head in micron unit and used in combination with I/P converter.
(Precision proportional control valve)
It has 8 channels and can be used for multiple ATC correction holders by channel number.
However, one channel is active (in use). (One axis can be controlled)
"Manual correction" which corrects by pressing plus/minus button of the correction control unit, also "Automatic correction" which corrects automatically through the machine control unit in conjunction with the automatic measuring device are both available.
Equipped with middle release function and I/O check function as standard.
- Power supply voltage
- AC100V～AC240V (Wide range specifications)
- External signal voltage
- Parallel input signal DC24V (bidirectional common)
- Parallel output signal
- Green 7seg LED
- Power consumption
- 75W

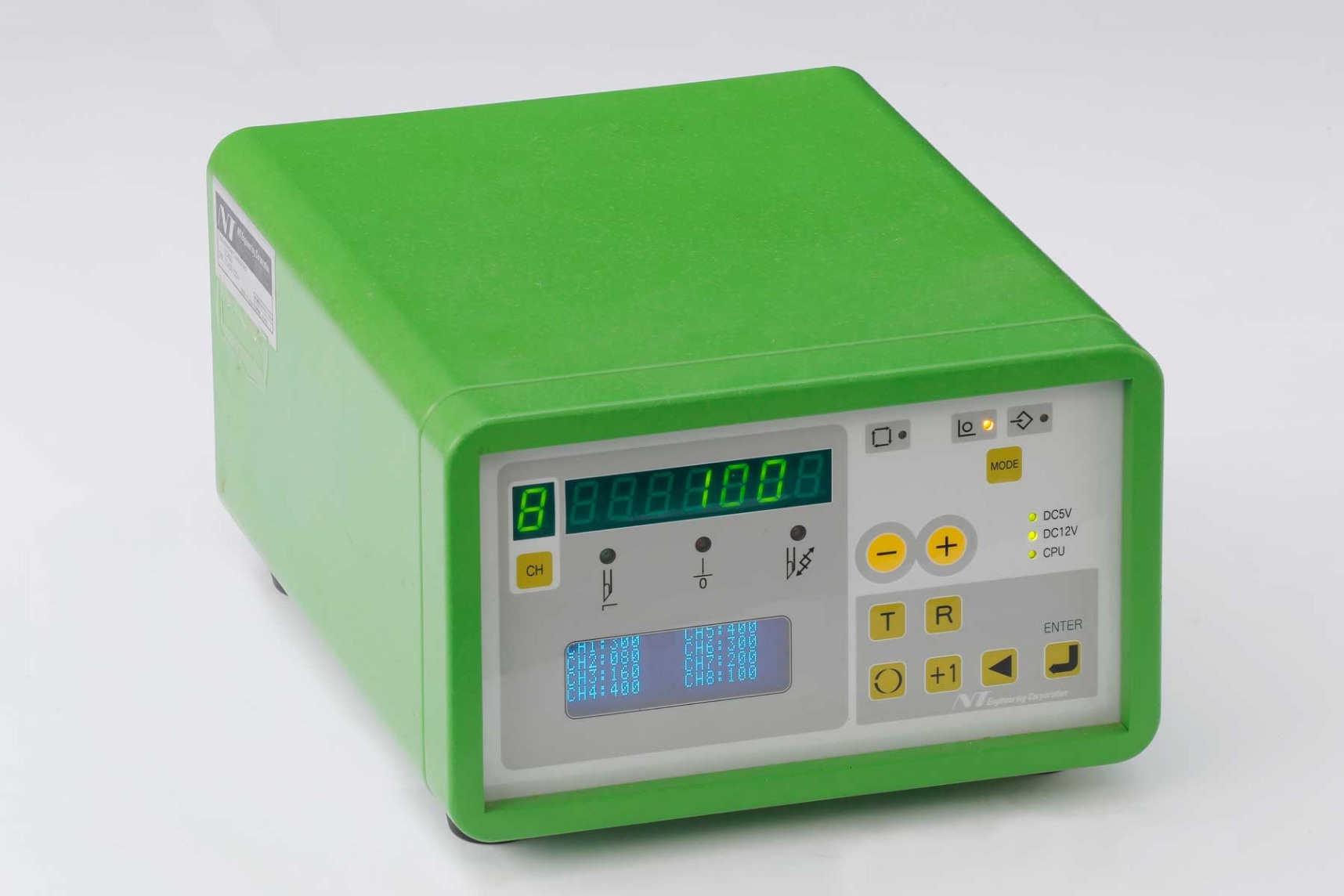

8channels spec. Correction controller
