TOOL CORRECTION SYSTEM

Control the hydraulic servo valve by built-in type sequencer.
Enable plus/minus taper machining.
User-friendly 5-inch display enables easy data input by touch-panel operation.


TC60X

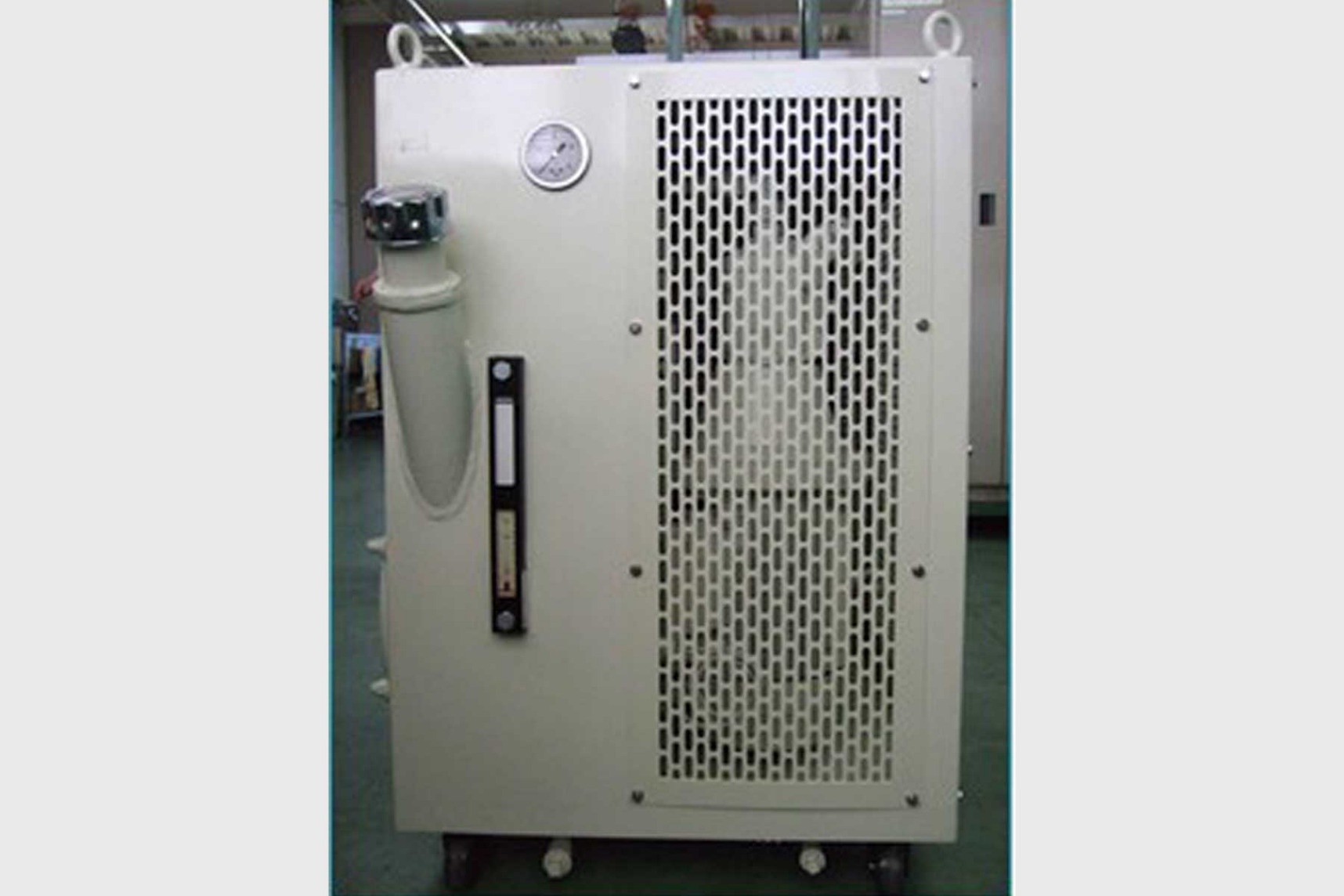

Hydraulic power package (Electric motor type)


Product features


This control unit is designated for hydraulic direct control correction system.
The servo valve is controlled with the signal calculated by the built-in sequencer.
By the controlled hydraulic pressure, the correction head can be corrected with high-accuracy and finely.
The 5-inche display is applied and enables easy data input by touch-panel operation.

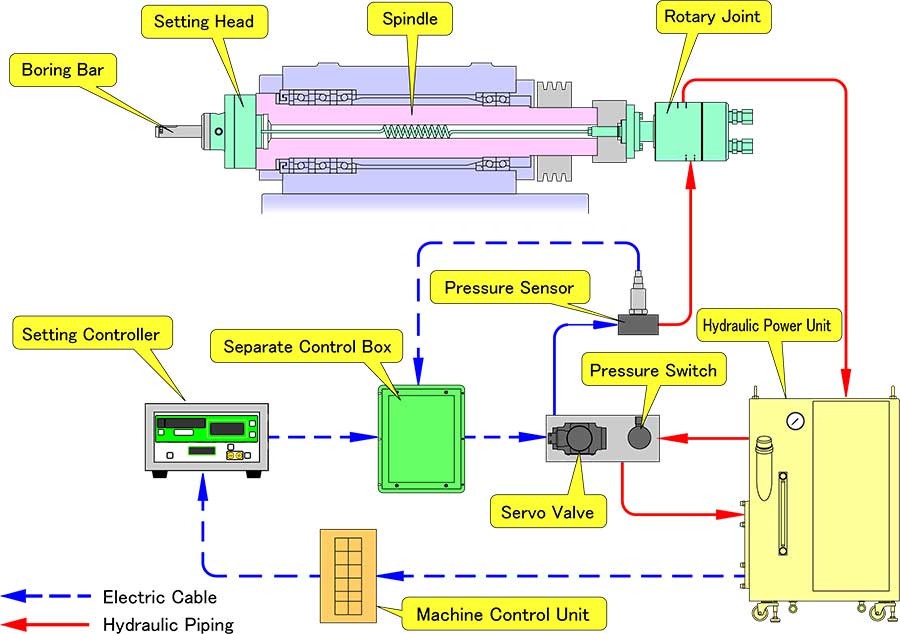

Electric motor type hydraulic power package type hydraulic direct controller


TC600 (for Electric motor Type) display screen

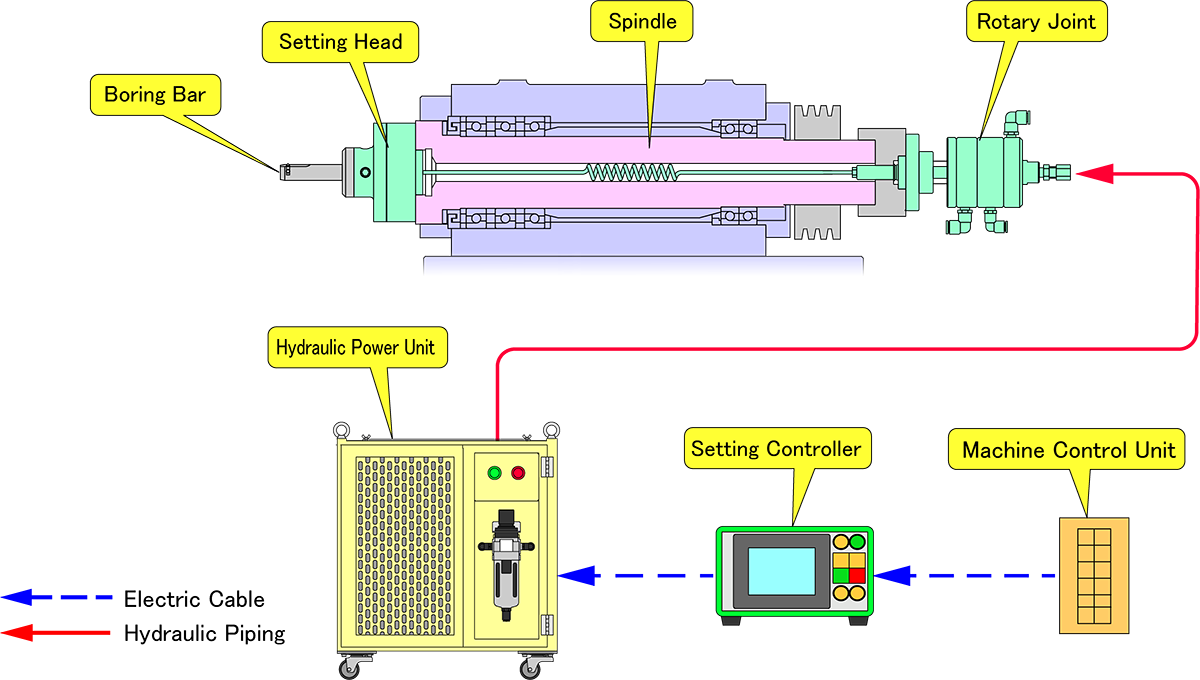

LPH type hydraulic direct controller

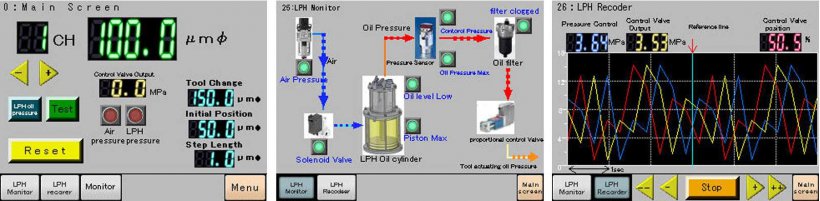

TC605 (for LPH Type) display screen
