Wireless ATC measurement system
Plug-in measuring controller

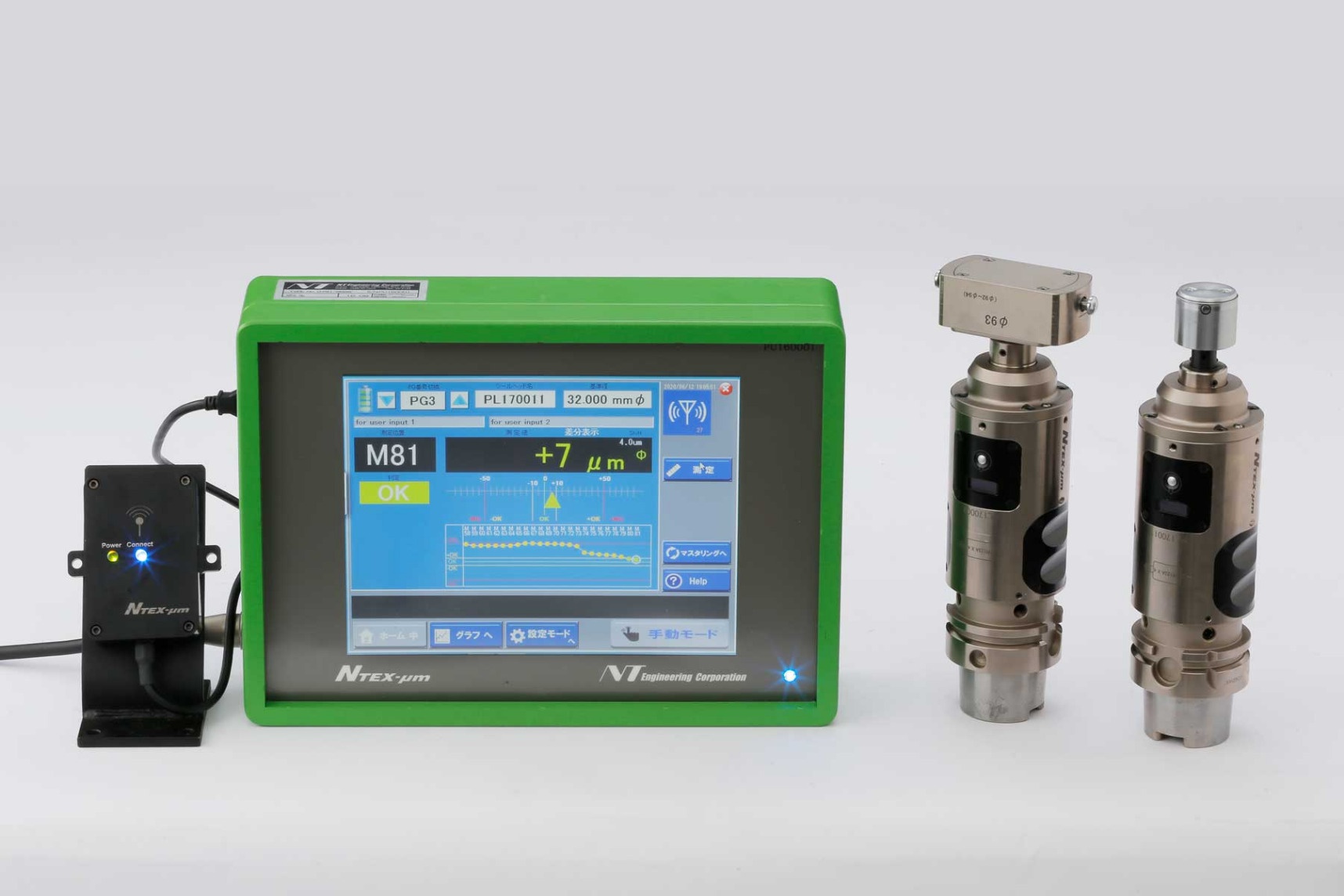

Plug in measurement system (including antenna and measurement controller)
Product features

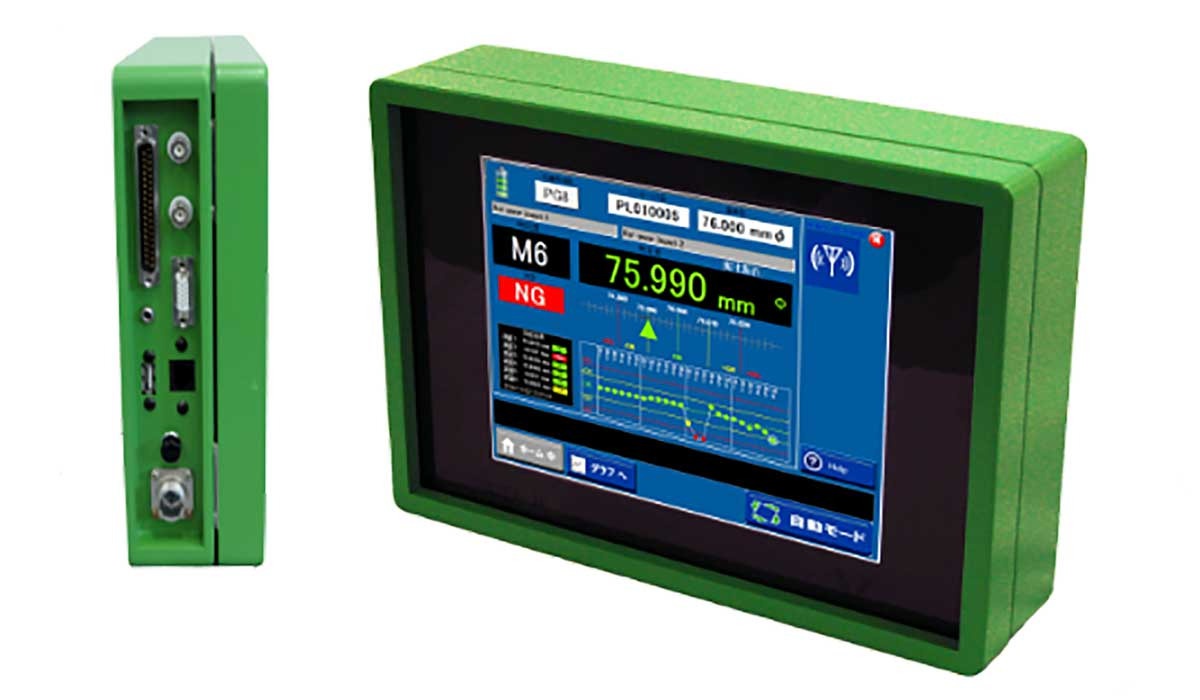

Plug-in Controller

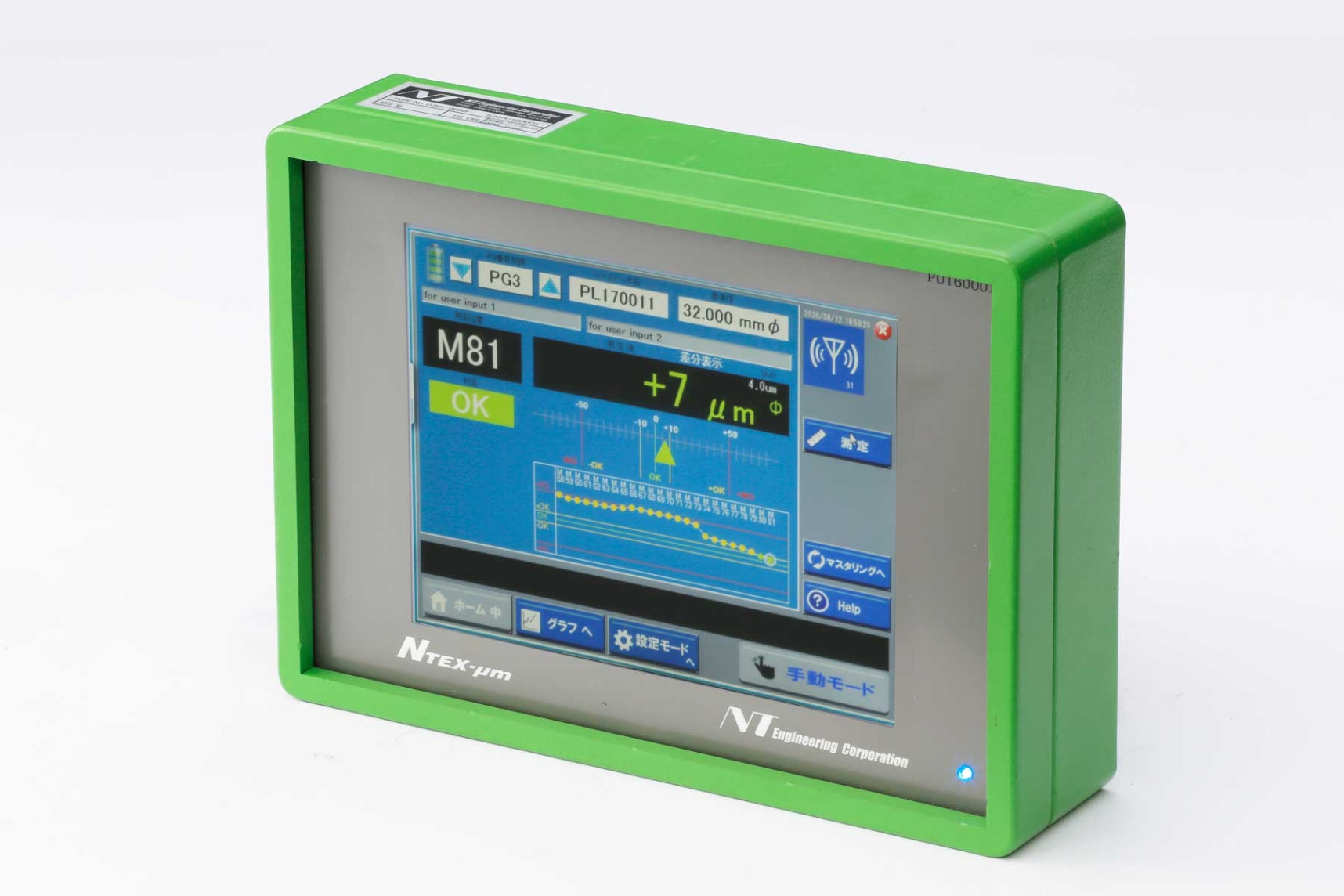

Controller NTEX-μm
Number of measurement settings: Wireless communication with up to 30 measuring heads is possible.
Touch panel liquid crystal display screen: 10 inches
- OS
- Windows10 IoT
- HDD
- 500GB (For system and data storage)
- Memory
- 4GB
- Power
- AC100～AC240V (Wide range specifications)
- Control signal
- DC24V
- Power Consumption
- 20W
- Dimension
- W320mm×H230mm×D80mm (Not including protrusions)
- 重量
- 4.5kg
Main measurement

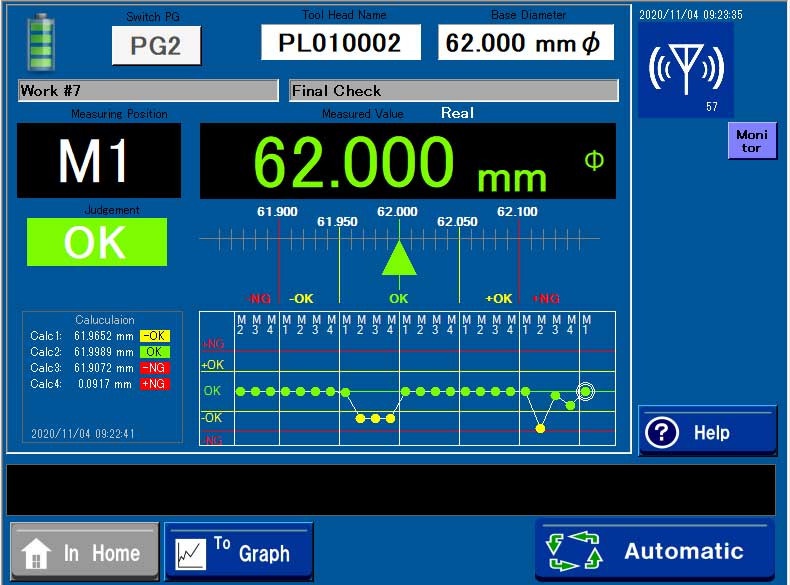

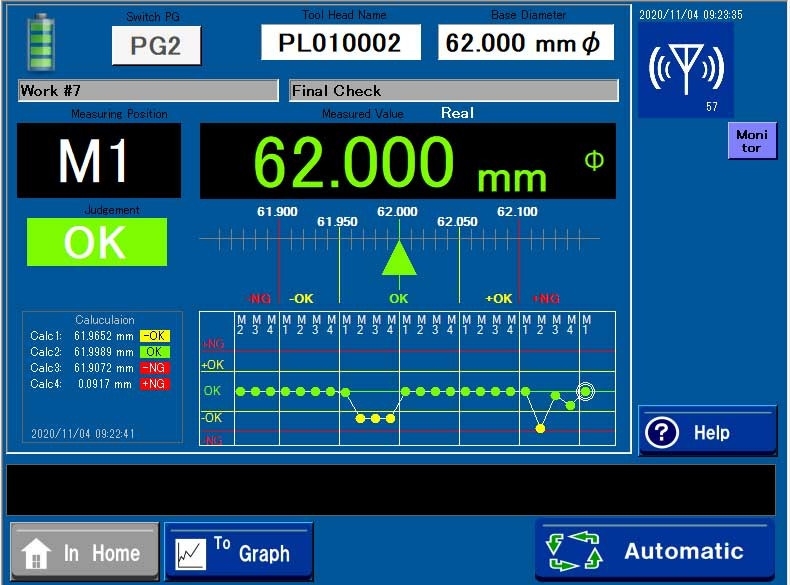

View measurement

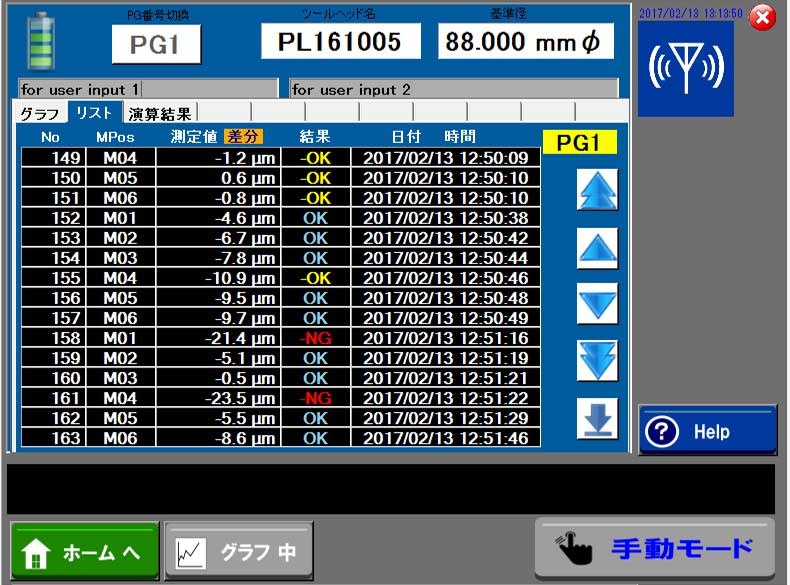

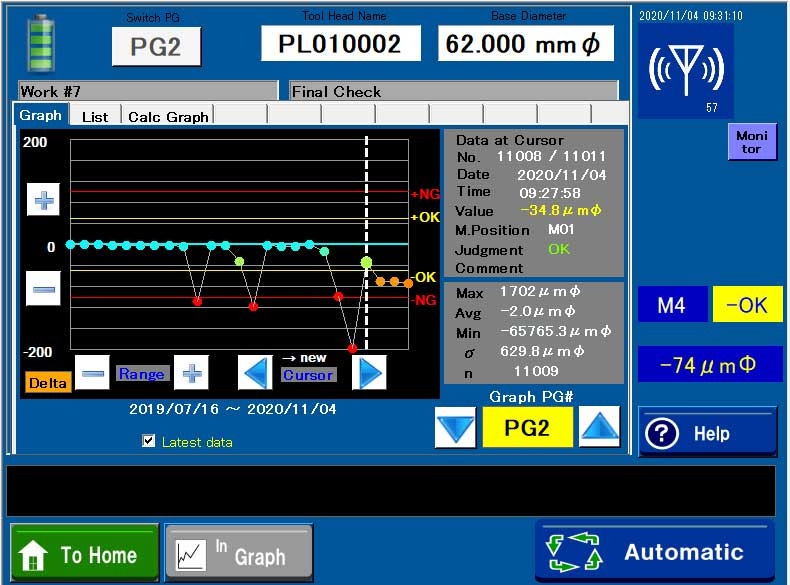

Data history
Standard feature
- Measured value display screen
- Display of measurement dimensions (display in units of 1 μmφ), graphic scale display
Run chart (latest 24 measured values in the same program), judgment display of 5 or 7 - Categories and calipers function
- Real-time display (every 0.1 seconds) of measured values in manual mode on the controller
- Mastering function (manual and automatic)
- Calculation function
- Maximum/minimum, average, difference, four arithmetic operations are possible
- Repeat counter function
- For correction output
- Display of battery alarm of measuring head
- I/O monitoring-I/O check function
- Measurement data storage function
- Up to 20,000 sets of measurement data can be saved in the HDD as CSV in each program. Data can also be output via RS232C. ‥
After selecting/arranging the measurement data, it is also possible to send it out to a higher-level model via a LAN port. ‥
By selecting and organizing the measurement data as an IoT edge device, and sending out the necessary ones, it becomes the selected high-quality data.
